OVERVIEW
Specifically designed for use with the GB10 and GB40, the GB410C provides high power handling and a seamless transition between woofer and tweeter. A precise L-pad, which keeps the crossover frequency, slope and Q constant over a 12 dB level adjustment range, is included for tweeter tuning.
FEATURES
- Air Core Coils
- Polypropylene Capacitors
- Wire-Wound Resistors
- L-Pad Tweeter Adjustment Circuit
- Tweeter Adjustment Scale Marked in 1/4 dB Increments
- Screw Terminals
- Cast Aluminum Chassis
- Clear Component Viewing Window
TECHNICAL DETAILS
Specifications:
- Nominal Impedance: 4 Ω
- RMS Power Handling: 100 W (with recommended crossover)
- Peak Power Handling: 300 W (with recommended crossover)
- Frequency Response (-3 dB): 80 Hz – 24 kHz
- Crossover Frequency: 2.5 kHz
- Low Pass Filter: 2nd Order
- High Pass Filter: 3rd Order
- Recommended Amplifier RMS Power Range: 20 W – 100 W
- Recommended High Pass Filter Frequency and Slope: ≥ 110 Hz, ≥ 12 dB/oct
- Reference Tweeter Level Setting: -5 dB

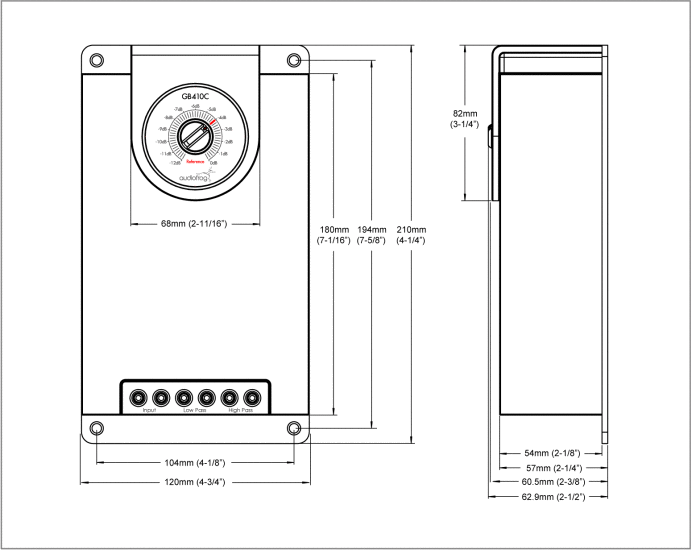

Dimensions:

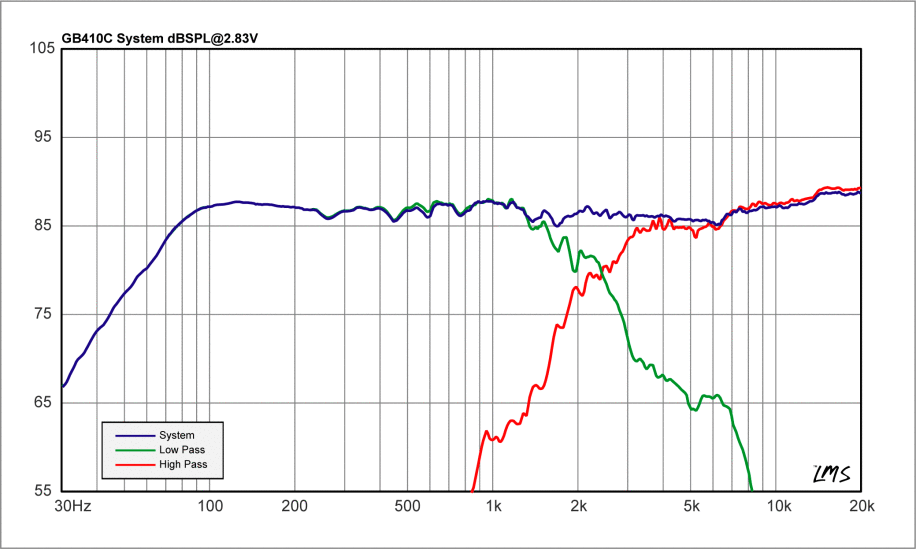

Frequency Response:
Impedance:
DOWNLOADS
Applications and Systems
Active Systems:
- GB10 and GB25: Perfect for A-pillars, doors or a center channel
- GB10 and GB40: Perfect for A-pillars, doors or a center channel
- GB10 and GB60: Great two-way system for factory locations
- GB10, GB25 and GB60: The ultimate active system for A-pillars with door or kick panel-mounted midbass. Great for doors when only a small midrange driver will fit between the midbass and the tweeter.
- GB10, GB40 and GB60: The ultimate active system for door panel installation.
Passive Systems with dedicated crossovers:
- GB10, GB40 and GB410C: Perfect for doors or a center channel with a passive crossover. Shallow design is great for BMW doors.
- GB10, GB60 and GB610C: Great for standard OE locations or for kick panels.
In combination systems with active and passive crossovers:
- GB10, GB40, GB410C and GB60: The ultimate system for doors when a small tweeter is required using a passive crossover between mid and tweeter and an active crossover between midbass and midrange
